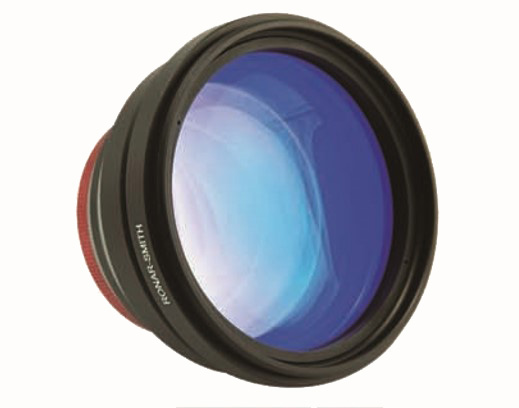

F-THETA平场扫描透镜
型号：平场扫描透镜
基本参数：
1.F-THETA镜常用在激光打标、焊接、雕刻等应用中，常与振镜搭配使用；
2.常用的场镜镜片有普通光学玻璃、全石英和两种镜片混合，根据输入激光的功率、脉宽决定。全石英场镜常用于高功率激光和皮秒激光应用；
3.全幅面内光斑均匀，畸变<1%小；
光学玻璃材料产品系列
光学玻璃材料应用于各种波段，532nm到1550nm，同样适用于大部分的工业激光应用。
1064nm系列

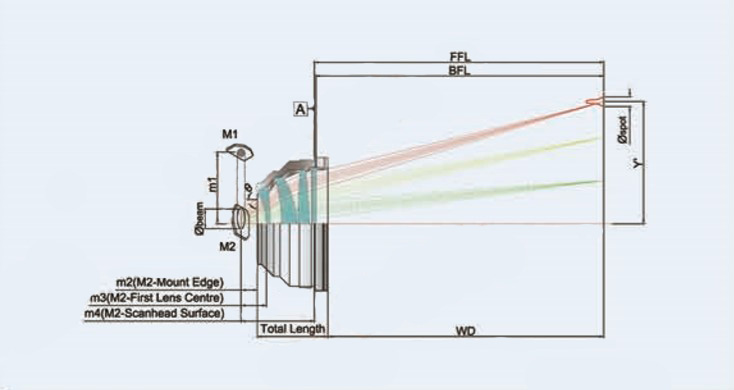

型号 | 有效焦距 (mm) | 扫描幅面 (mm) | 入射光瞳 (mm) | 扫描角(*) | 螺纹接口 | 法兰距(mm) | 工作距(mm) | M2螺纹底端 | 聚焦光斑直径(um) (中心/边缘) | 产品编码 |
SLF-1064-63-8 | 63 | 33*33 | 8 | ±21.6 | M39*1 | 84.78 | 69.02 | 17.95 | 6.95-12 | 1J990200027 |
SL-1064-35-73D5 | 73 | 35*35 | 5 | ±22.5 | M35*1 | 89.86 | 86.86 | 35 | 200-400 | 1J990200197 |
SL-1064-40-80-D25 | 80 | 40*40 | 25 | ±21 | M85*1 | 142.87 | 78.82 | 33 | 12-30 | 1J990200224 |
SL-1064-45-80 | 80 | 45*45 | 10 | ±23 | M55*1 | 105.55 | 91.35 | 24.05 | 11.3-12.4 | 1J990200001 |
SL-1064-50-100 | 100 | 50*50 | 10 | ±20 | M55*1 | 140.44 | 110.44 | 18 | 10-12 | 1J990200065 |
SL-1064-50-210-D10 | 210 | 50*50 | 10 | ±10 | M79*1 | 278.46 | 246.38 | 26 | 38-40 | 1J990200169 |
SL-1064-50-160 | 160 | 50*50 | 8 | ±9 | M39*1 | 198.1 | 183.3 | 11.22 | 40-45 | 1J990200012 |
SL-1064-50-160-D12 | 160 | 50*50 | 12 | ±25 | M39*1 | 197.2 | 175.2 | 25.55 | 28-30 | 1J990200178 |
SL-1064-50-100-D30 | 100 | 50*50 | 30 | ±25 | M112*1 | 217.53 | 115.53 | 47 | 7-12 | 1J990200087 |
SL-1064-51-100-D20 | 100 | 51*51 | 20 | ±20.8 | M85*1 | 167.8 | 115.8 | 27.2 | 17-34 | 1J990200230 |
SLF-1064-80-8 | 80 | 52*52 | 8 | ±27 | M39*1 | 128.35 | 94.04 | 14.24 | 9.84-10.18 | 1J990200085 |
SLF-1064-100-8 | 100 | 60*60 | 8 | ±24.4 | M39*1 | 146.85 | 117.85 | 10.65 | 24-25 | 1J990200063 |
SL-1064-65-125 | 125 | 65*65 | 15 | ±21.3 | M85*1 | 187.13 | 146.63 | 34.39 | 12.3-13.8 | 1J990200002 |
SL-1064-70-100G | 100 | 70*70 | 14 | ±25 | M85*1 | 104.3 | 98.8 | 43.54 | 10-12 | 1J990200013 |
SL-1064-70-100N | 100 | 70*70 | 10 | ±25 | M85*1 | 105.6 | 97.55 | 42 | 20-20 | 1J990200047 |
SL-1064-70-160-D30 | 160 | 70*70 | 30 | ±18 | M100*1 | 218.7 | 170.2 | 20 | 15-35 | 1J990200004 |
SL-1064-80-+A4:K19125-D15 | 125 | 80*80 | 15 | ±26.4 | M85*1 | 196.9 | 152.6 | 36.94 | 16-19 | 1J990200204 |
SL-1064-80-170AC | 170 | 80*80 | 30 | ±25 | M112*1 | 273.38 | 217.5 | 38 | 50-60 | 1J990200101 |
SL-1064-F166-30 | 165 | 85*85 | 30 | ±21 | M85*1 | 287.84 | 197.07 | 15..5 | 18-46 | 1J990200105 |
SLF-1064-160-8 | 160 | 90*90 | 8 | ±23 | M39*1 | 209.65 | 184.81 | 17.03 | 13.65-11.03 | 1J990200028 |
SL-1064-96-160-D20 | 160 | 96*96 | 20 | ±25 | M85*1 | 231.85 | 180.85 | 13 | 54-108 | 1J990200229 |
SL-1064-96-170-D30 | 170 | 96*96 | 30 | ±22.9 | M95*1 | 295.8 | 181.3 | 37.2 | 28-76 | 1J990200232 |
SL-1064-95-130C | 130 | 100*100 | 3 | ±29.5 | M85*1 | 139.96 | 132.31 | 57.08 | 56.8-66.9 | 1J990200103 |
SL-1064-100-160A | 160 | 100*100 | 10 | ±25 | M85*1 | 190.03 | 178.6 | 49.56 | 25-30 | 1J990200015 |
SL-1064-100-160-D20 | 160 | 100*100 | 20 | ±25.8 | M85*1 | 207.4 | 187.9 | 76.5 | 21.2-33.4 | 1J990200048 |
SL-1064-100-165-D25 | 165 | 100*100 | 25 | ±23.5 | M85*1 | 287.84 | 197.14 | 15.5 | 18-28 | 1J990200052 |
SL-1064-100-254-D30 | 253.85 | 100*100 | 30 | ±17.8 | M85*1 | 362.43 | 303.33 | 43.48 | 16-17 | 1J990200008 |
SL-1064-107-163 | 163 | 107*107 | 12 | ±26.3 | M85*1 | 184.06 | 180.86 | 14.01 | 26-28 | 1J990200221 |
SL-1064-F160B | 160 | 110*110 | 12 | ±27.6 | M85*1 | 191 | 182.94 | 14.04 | 26.8-38 | 1J990200116 |
SL-1064-112-163 | 163 | 112*112 | 10 | ±27.8 | M85*1 | 193.42 | 181.93 | 16.73 | 32-36 | 1J990200030 |
