UV熔融石英直角棱镜
Ø可用于宽带应用
Ø备有镀铝膜版或增透涂层面
Ø尺寸介于5 - 50mm之间
Ø另外也备有可选的额外 直角棱镜

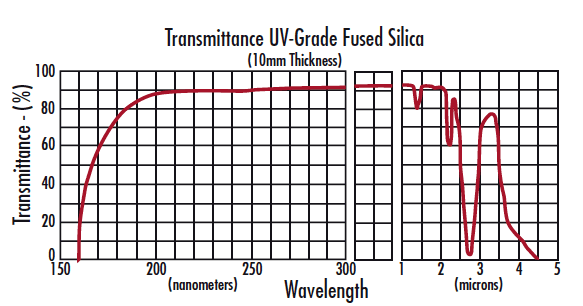

直角棱镜一般用于弯曲图像路径或将光路转折90°。本产品可产生左旋性的图像，这取决于棱镜的方向、是否翻转或回转图像。直角棱镜也可用于合成图像/光束偏移等应用。TECHSPEC® UV熔融石英直角棱镜采用UV熔融石英制作而成，具有热膨胀低，并在UV、可见和NIR范围内有着很好的透射。
通用规格
角度容差（弧秒）: | ±5 |
倒角: | Protective bevel as needed |
尺寸容差 (mm): | ±0.10 Legs |
图像定位: | Left-Handed |
锥体公差（弧分） : | ±5 |
射线偏差 (°): | 90.00 |
基底: | Fused Silica |
表面平整度: | λ/2 |
表面质量: | 60-40 |
技术数据
订购信息
涂层 | 斜边长度 (mm) | 支脚长度 (mm) | 产品号 |
Uncoated | 7.1 | 5 | #45-071 |
Uncoated | 14.1 | 10 | #45-072 |
Uncoated | 17.7 | 12.5 | #47-784 |
Uncoated | 21.2 | 15 | #45-184 |
Uncoated | 28.3 | 20 | #47-785 |
Uncoated | 35.4 | 25 | #47-786 |
Uncoated | 42.4 | 30 | #47-787 |
Uncoated | 56.6 | 40 | #47-788 |
Uncoated | 70.7 | 50 | #47-789 |
MgF2& Aluminized | 7.1 | 5 | #47-791 |
MgF2& Aluminized | 14.1 | 10 | #47-792 |
MgF2& Aluminized | 17.7 | 12.5 | #47-793 |
MgF2& Aluminized | 21.2 | 15 | #47-794 |
MgF2& Aluminized | 28.3 | 20 | #47-795 |
MgF2& Aluminized | 35.4 | 25 | #47-796 |
MgF2& Aluminized | 42.4 | 30 | #47-797 |
MgF2& Aluminized | 56.6 | 40 | #47-798 |
MgF2& Aluminized | 70.7 | 50 | #47-799 |
